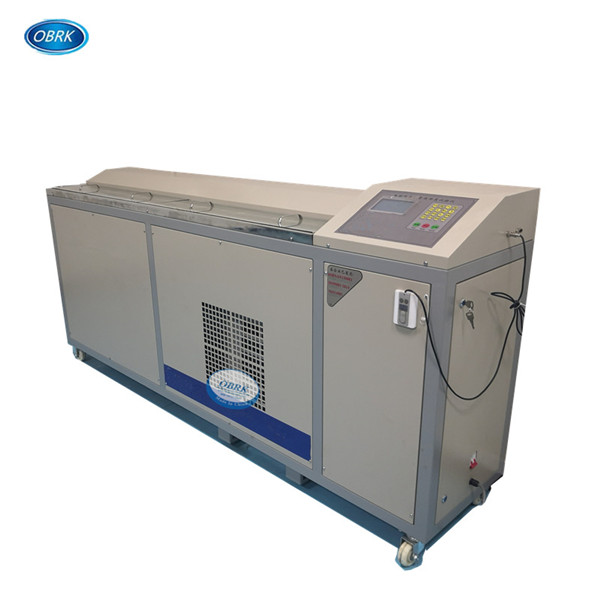

Advance Ductilometer Apparatus

Category :Bitumen & Asphalt Testing
Name :
Tel :
Email :
Content :


Product Description:

Test  the length of asphaltum when asphaltum is drawn to break under certain temperature and speed. The machine can perform three simultaneous tests. The bath is fitted with an immersion heater in order to obtain, in normal conditions, the 50°C test temperature using, as stabilising element, the cold water circulation in the stainless steel interspace.

Standard : EN 13398, ASTM D133, AASHTO T51

Technical Specifications:

Model NO.

LYY-7

Max. Carriage Displacement

1500mm

Displacement Accuracy

1mm

Temperature Range

0 - 40°C

Temperature Accuracy

±0.1°C

Test Speed

10-50 mm / min

Cooling Power

1200 W

Heating Power

4200 W

Voltage

220V

Weight

260KG

Dimension(mm)

2300x530x1200
