Standard: ASTM D1559, D5581, AASTHO T245

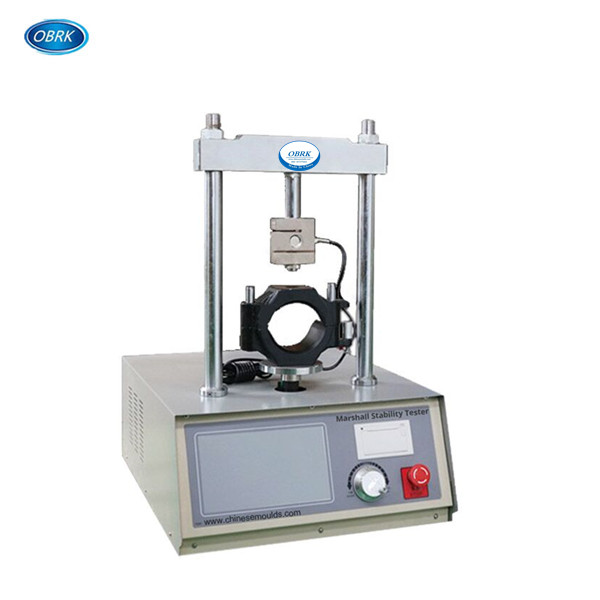

The Marshall Stability Test Machine is used to determine the load and flow values of bituminous mixtures.
Characteristic:
1. With mini hand wheel,can go up or down manually
2. Color touch screen display
3.Simple operation, accurate test data, stable performance.
Technical Specifications:
Model NO. | LWD-5A |
Max. Capacity | 50KN |
Test Rate | 50.80mm / min |
Breaking Head Diameter | 101.6mm or152.4mm ( choice) |
Displacement transducer | 25 mm x 0.001 mm |
Voltage | 220V |
Weight | 90KG |
