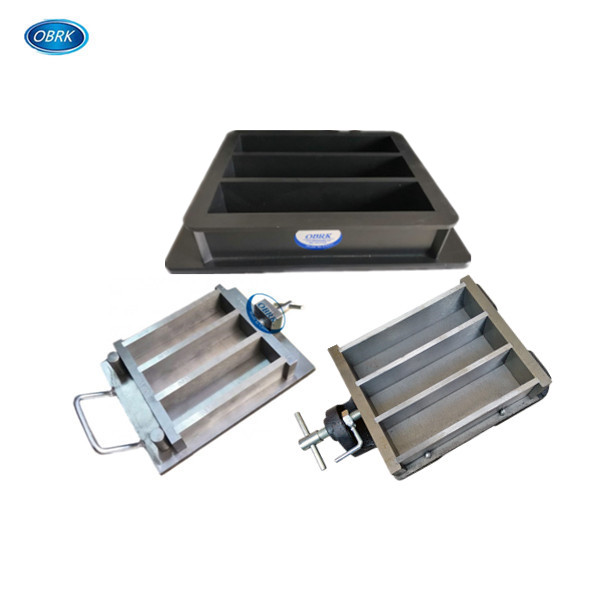

These three gang moulds are used to cast mortar prism specimens for flexural and compression tests, with dimensions as per standard requirement. Made from special alloy steel with a minimum surface hardness of HV200 and flat surfaces ensure reliable test result.
Standard:EN 196-1
Technical Specifications :
Model | Dimension (mm) | Material | Weight |
PM-01 | 40 (W) x 40 (H) x 160 (L) | Carbon Steel & Cast Iron | 6.5KG |
PM-02 | 40 (W) x 40 (H) x 160 (L) | ABS Plastic | 0.5 KG |
PM-03 | 40 (W) x 40 (H) x 160 (L) | Carbon Steel | 6KG |
