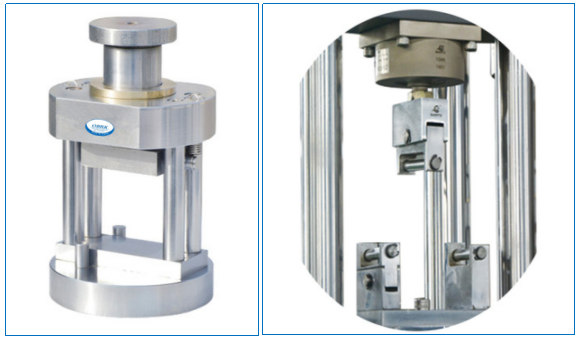

The testing machine is a host oil source integrated structure, working space for split type;The flexural fixture is integrated unsprung design, and the test results are more accurate, which can meet the flexural test of cement cement sand.The compression part is suitable for the compressive test of cement and concrete. With appropriate fixture and measuring device, the splitting and pulling test and static pressure elastic modulus test of concrete can be satisfied.

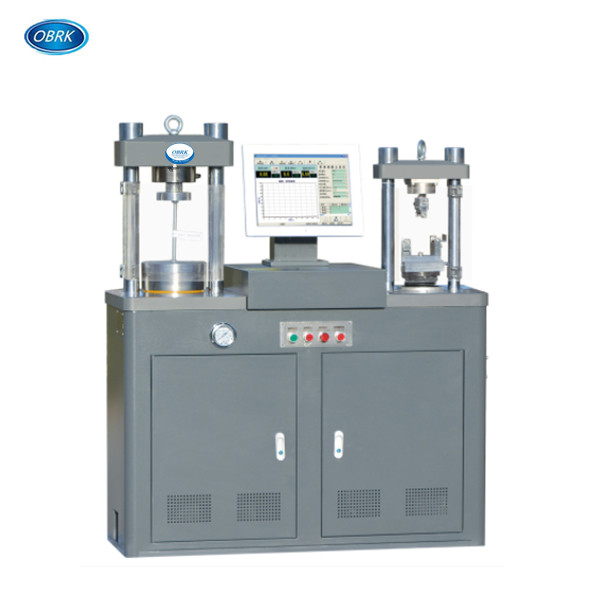

The Testing machine is for cement, concrete and other materials to carry out compression, flexural tests.
Technical Specifications:
Model Number | HYE-300B | HYE-300D |
Max load capacity | 300KN | 10KN |
Compression space | 180mm | 180mm |
Piston stroke | 80mm | 60mm |
Size of upper compression plate(Ball head) | Diameter170mm | / |
Size of upper compression plates(Fix type) | Diameter 108mm | Diameter 60mm |
Size of lower compression plates(mm) | Diameter 205mm | / |
Dimension | 1160×5001400mm | |
Power | 380V(220V optional), 50Hz(60Hz optional), 0.75kW | |
Weight | 500KG | 540KG |
