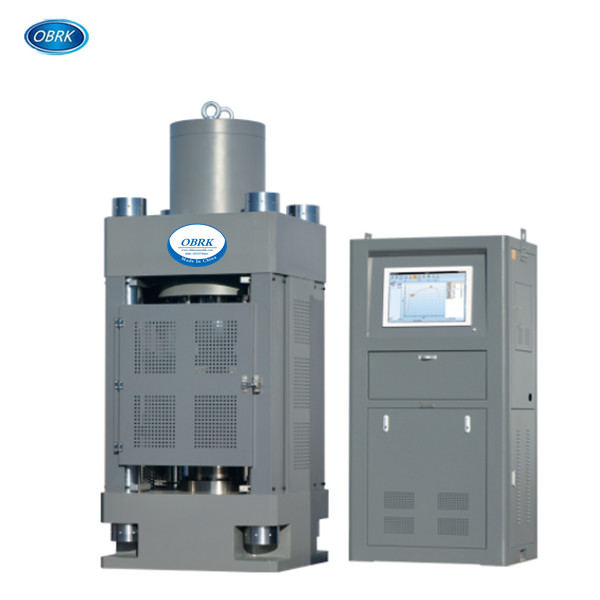

Applicable to cement, concrete compressive test, with appropriate fixture and measuring device can meet the concrete splitting test, static pressure elastic modulus test, anchor plate static pressure test.
Technical Specifications:
Model Number | YAW-5000AM |
Max load capacity | 5000KN |
Compression space | 400mm |
Piston stroke | 400mm |
Piston displacement velocity | 0-50mm/min |
Force maintains control range | 0.3%-100%F·S |
Loading speed | 0.02%-2%FS/s |
Platen size | 500×500mm |
Piston motion direction control | Two-way cylinder |
Effective distance between columns | 600×600mm |
Dimensions (body) | 1100×1100×2600 mm |
Dimensions (control cabinet) | 860×640×1780mm |
Power | 3.5KW（AC380V） |
Weight | 6000KG |
