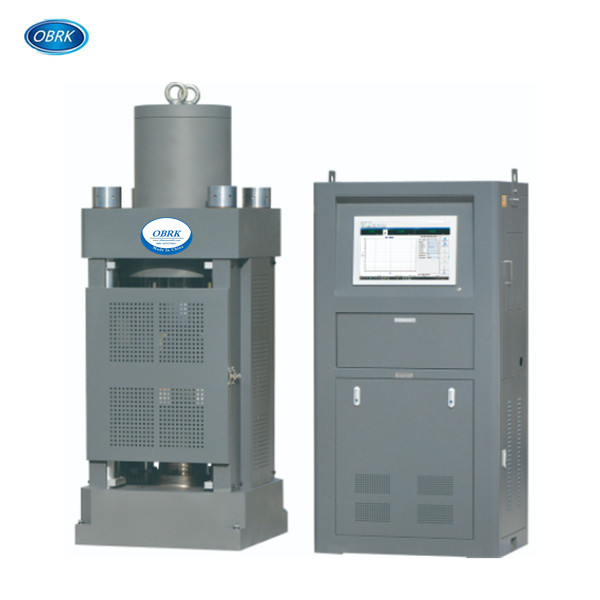

It is suitable for the compressive test of cement and concrete, and can meet the splitting and pulling test and static pressure elastic modulus test of concrete with appropriate fixture and measuring device.
Driven by hydraulic power source, the electro-hydraulic servo control technology, computer data collection and processing, can realize the closed loop control and automatic detection of high-precision materials testing equipment, its by the test host, oil source (hydraulic power source), measurement and control system, test instruments of four parts, the biggest test force 3000 kn, testing machine precision is better than that of grade 1.
Technical Specifications:
Model Number | YAW-3000AM |
Max load capacity | 3000KN |
Compression space | 335mm |
Piston stroke | 300mm |
Piston displacement velocity | 0-60mm/min |
Force maintains control range | 0.3%-100%F·S |
Loading speed | 0.02%-2%FS/s |
Platen size | Diameter 300mm |
Piston motion direction control | Two-way cylinder |
Effective distance between columns | 450×450mm |
Dimensions (body) | 800×800×2150 mm |
Dimensions (control cabinet) | 860×640×1780mm |
Power | 3.5KW（AC380V） |
Weight | 3500KG |
