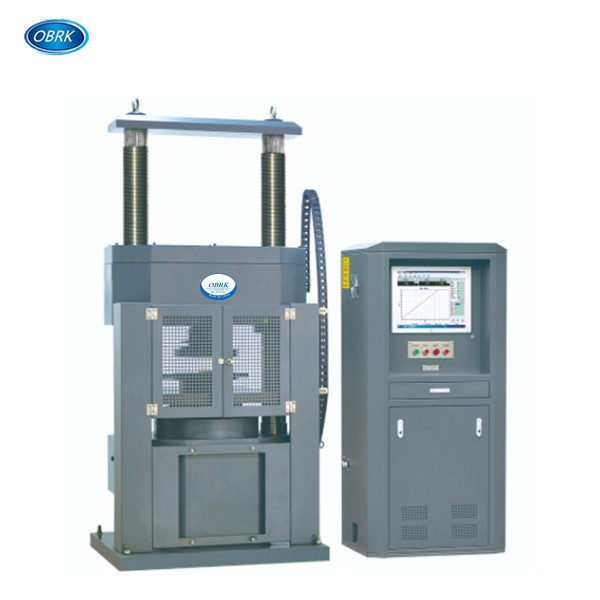

Adopt the hydraulic power source drive, electro-hydraulic servo control technology, computer data acquisition and processing, can realize closed-loop control and automatic detection of high-precision material test equipment, which is composed of the test host, oil source (hydraulic power source), measurement and control system, test equipment four parts, the maximum test force of 2000kN.
It is suitable for the compressive test of cement and concrete, and can meet the splitting and pulling test and static pressure elastic modulus test of concrete with appropriate fixture and measuring device.
Technical Specifications:
Model Number | SYE-2000BS |
Max load capacity | 2000KN |
Engine structure | Double lead screw electric regulation |
Compression space | 520mm |
Piston stroke | 200mm |
Measuring range of test force | 1%-100%FS (non-graded throughout) |
Loading speed | 0.02%-2%FS/s |
Platen size | Diameter 300mm |
Effective distance between column | 440mm |
Dimensions (body) | 840×640×1780 mm |
Dimensions (control cabinet) | 600×540×1370mm |
Power | 2.7kW（AC380V） |
Weight | 1700KG |
