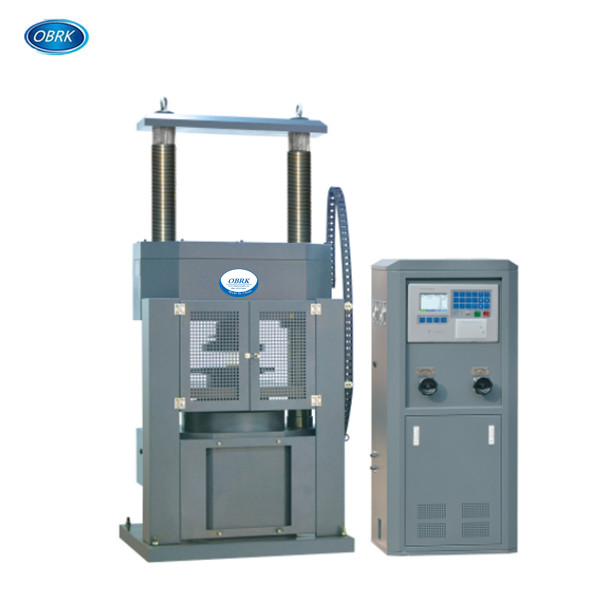

Manual loading, LCD display load, time and test curve.
Applicable to cement, concrete compressive test, with appropriate fixture and measuring device can meet the concrete splitting test, flexural test, static pressure elastic modulus test.
Technical Specifications:
Model Number | SYE-3000BD |
Max load capacity | 3000KN |
Engine structure | Double lead screw electric regulation |
Compression space | 550mm |
Piston stroke | 200mm |
Platen size | Diameter 300mm |
Effective distance between column | 540mm |
Dimensions (body) | 960×740×2080 mm |
Dimensions (control cabinet) | 600×540×1370mm |
Power | 23.0kW（AC380V） |
Weight | 3100KG |
