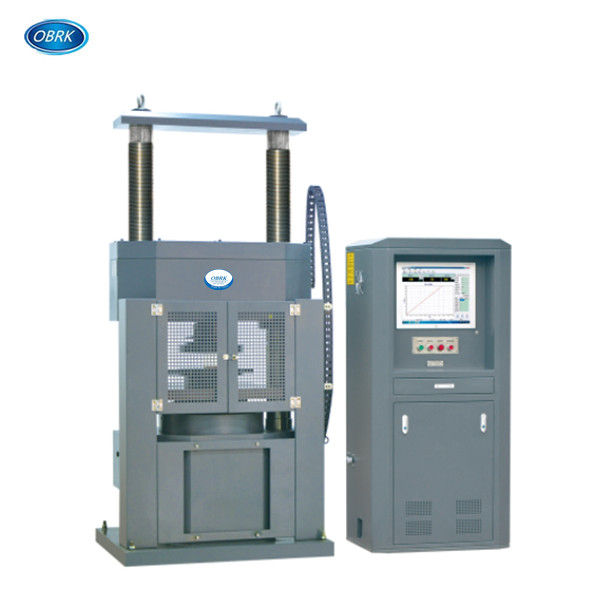

Adopt hydraulic power source drive, electro-hydraulic servo control technology, computer data acquisition and processing, can realize closed-loop control and automatic detection of high-precision material test equipment.
It is suitable for the compressive test of cement and concrete, and can meet the splitting and pulling test and static pressure elastic modulus test of concrete with appropriate fixture and measuring device.
Technical Specifications:
Model Number | SYE-3000BS |
Max load capacity | 3000KN |
Engine structure | Double lead screw electric regulation |
Loading speed | 0.02%-2%FS/s |
Measuring range of test force | 1%-100%FS(non-graded) |
Compression space | 550mm |
Piston stroke | 200mm |
Platen size | Diameter 300mm |
Effective distance between column | 540mm |
Dimensions (body) | 960×740×2080 mm |
Dimensions (control cabinet) | 700×540×1500mm |
Power | 3.0kW(AC380V) |
Weight | 3100KG |
