Adopt hydraulic power source drive, electro-hydraulic servo control technology, computer data acquisition and processing, can realize closed loop control and automatic detection.

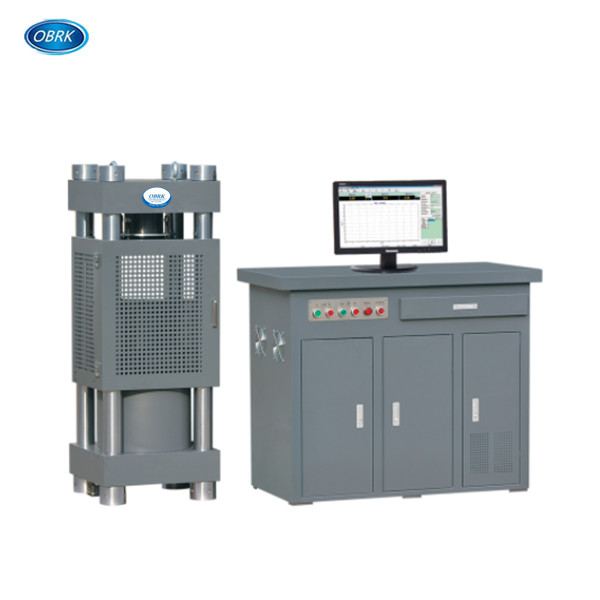

This compression testing machine is suitable for cement, concrete compressive test, with appropriate fixture and measuring device can meet the concrete splitting test, static pressure elastic modulus test.
Technical Specifications:
HYE-2000BS | |
Load capacity | 0-2000KN |
Measuring range of test force | 1%-100%FS(full range ungraded) |
Compression space | 360mm |
Piston stroke | 120mm |
Piston displacement speed | 0-60mm/min |
Test force loading speed | 0.02%-2%FS/s |
Platen size: | Diameter 300 mm |
Effective distance between columns | 280mm |
Machine dimensions (Body) | 450×400×1250 mm |
Dimensions of control cabinet | 1100×500×900mm |
Power | 2.0KW |
Weight | 950KG |
