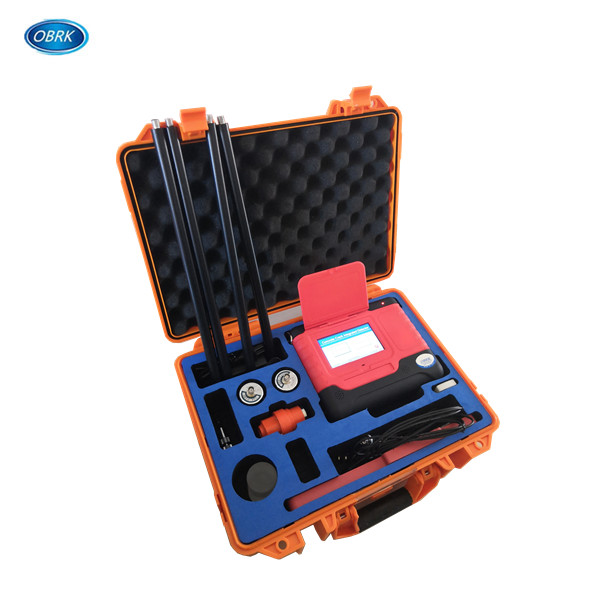

Concrete Testing Equipment LED Screen Crack Integrated Tester is mainly designed to accurately detect crack width and depth in bridges, tunnels,concrete pavements and so on.
It is a multi-purpose instrument which can both measure the crack width and depth. Operator can not only view and record the crack width by color amplification probe, but also can measure the crack depth by ultrasonic probe.
Technical Specifications:
Model No | CID-50A |
Crack Width Test Rang | Standard Probe: 0.01mm~6.5mm |
Crack Width Test Accuracy | Standard Probe:≤±0.02mm;High Grade Probe: ≤±0.01mm |
Crack Depth Test Rang | 10mm~500mm |
Crack Depth Test Accuracy | ≤±5% |
Power | Rechargeable Lithium Battery |
Working Time | ≥28 Hours |
Working Temperature | -10℃~+50℃ |
Working Humidity | ≤90%RH |
Weight | 5KG |
Packing Size | 46x35x16cm |
