Standard:ASTM D1194, D1195, D1196 – BS 1377:9 –CNR NO. 92 AND NO. 146 – DIN 18134

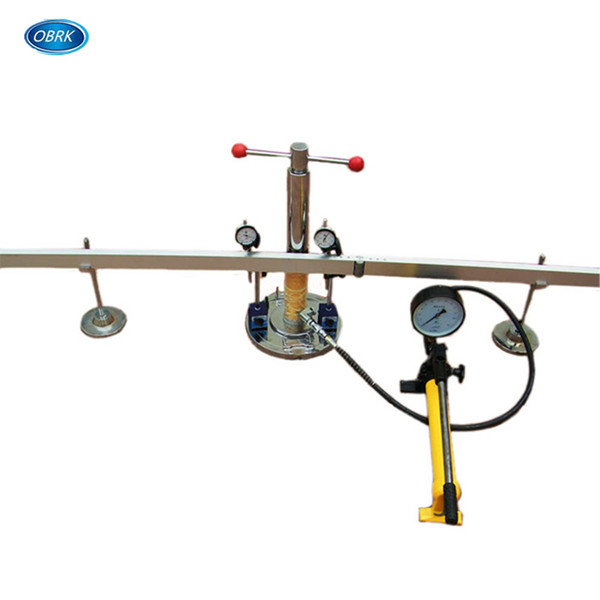

The Plate Bearing Test Equipment For Soil Ground Testing is a field equipment for determining the ultimate bearing capacity of soil and the likely settlement under a given load. The Plate Load Tester applies a load on a steel plate placed at the foundation level and recording the settlements corresponding to each load increment.
Technical Specifications:
Model NO. | K-30 |
Load plate diameter | 300mm |
Jack load range | 1-10T |
Jack Stroke | 150mm |
Measuring bridge span | 3000 mm |
Hand pump rated pressure | 70 Mpa |
Stress test range | 0-25 Mpa |
Displacement measurement range | 0-10 mm |
Model NO. | K-500 | K-1000 |
Hydraulic jack max.load | 500KN/0.01KN | 1000KN/0.01KN |
Load plate | Ø 305 mm x 32 mm | Ø 305 mm x 32 mm |
Jack Stroke | 150mm | 150mm |
Measuring bridge span | 3000 mm | 3000 mm |
Hand pump rated pressure | 70 Mpa | 70 Mpa |
Stress test range | 0-25 Mpa | 0-25 Mpa |
Displacement measurement range | 0-10 mm | 0-10 mm |
