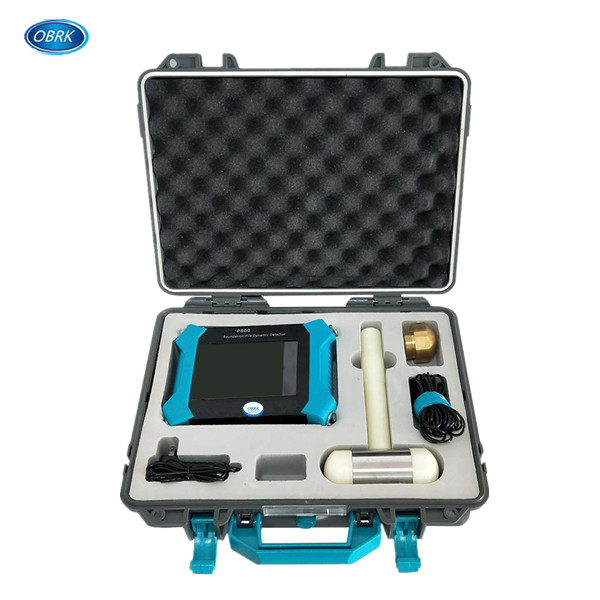

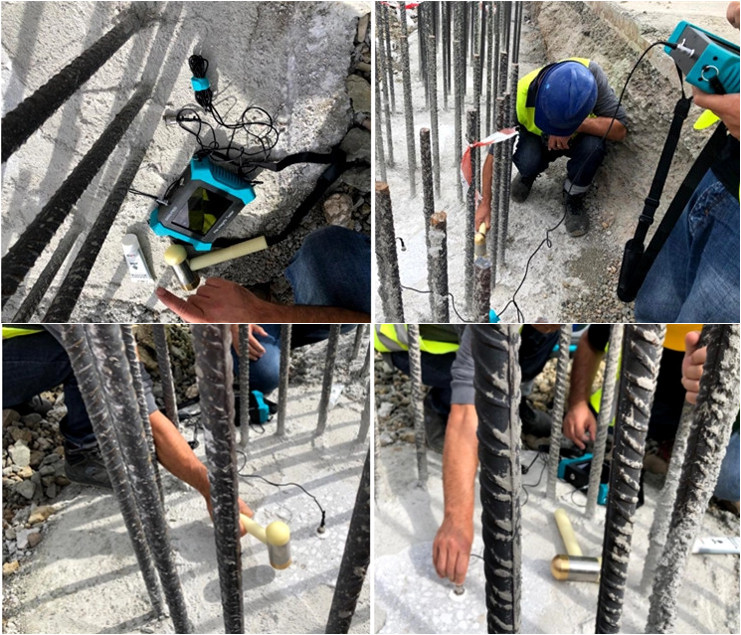

Foundation Testing PIT Pile Integrity TesterThe dynamic testing instrument for foundation pile is a test and analysis instrument for testing the structural integrity of foundation pile and the vertical bearing capacity of single pile under impact or vibration load in the process of pile integrity testing and monitoring of prefabricated pile. The purpose is to determine the bearing capacity and structural integrity of pile.
Technical Specifications:
Models | GTJ-P800 |
System noise voltage | less than2mV |
dynamic range | greater than138dB |
Amplifier band | 10Hz~10kHz |
A/D resolution ratio | 16bitA/D |
sample interval | 2us~32768us |
sampling length | 1024,2048,4096 |
Time indication error | less than1% |
number of channels | 1 |
magnification times | 1~128 |
trigger mode | signal to trigger |
transducer sensitivity | 100mV/g |
Sensor band | 1-10000Hz |
continuous working period | greater than10hour |
power supply | Built-in rechargeable lithium battery(+7.4V) |
display screen | 640*480 capacitive touch screen |
operating mode | touch |
