Standard: BSEN 10002-1, ISO 7500-1, ASTM A370
Usage:Used for measurement & test of mechanical property & analytical study of metal, non-metal & composite material, such as aviation, petrochemical, machinery manufacture, wire, cable, textile, fiber, plastic, rubber, ceramic, food, medicine packaging, aluminium plastic tube, plastic door & window, geo-textile, film, wood, paper, metal material & manufacture industry & etc.
It can record the max. test force, fracture value, yield value, max. compression value automatically. It can also calculate the fracture extension & all kind of strength value manually. The RA232 connector can do the function of communicating with computer to do the data work. It is a essential equipment for manufacture, construction unit, product quality supervision & inspection bureau & building material test department. It also could be used in the university for teaching purpose.
Technical Parameters:

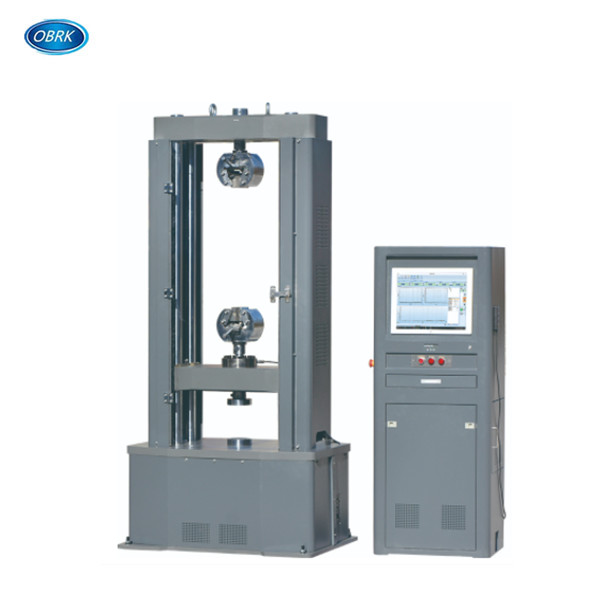

WDW-200A | |
Capacity | 200KN |
Machine Class | Class 0.5 |
Measuring range of test force | 0.4%—100%FS |
0.2%-100%FS | |
Large deformation measurement range | 15-1200mm |
Large deformation resolution | 0.008mm |
Displacement resolution | 0.0025mm |
Force control rate adjustment range | 0.005-5%FS/S |
Adjustable range of deformation rate | 0.02—5%FS/S |
Test Speed Range | 0.001—600mm/min |
Constant force, constant deformation, constant displacement control range | 0.5%--100%FS |
Max. Store | 600mm |
Max. Width (Space) | 560mm |
Dimensions of body | 1050x760x2300（mm） |
Dimension of control cabinet | 600x480x1520（mm） |
Power | 220V±10%，1.5kW |
Weight | 1500KG |
