Summary:
Mainly used for external thermal insulation material, thermal insulation mortar, geotextile, new waterproof coil, cloth paper, waterproof coating, waterproof sealing material and other materials of tensile, compression, bending, shear, peeling, folding resistance, top puncture test, can also be used for small metal material tensile performance test.Force value extension counts at the same time, set force value stop [fixed force extension], set extension length stop [constant extension stress], average value display and seven test speed and stepless speed regulation.Can display the maximum force value, material strength, tensile length and maximum elongation at one time and print.No operator to record and separate calculation, greatly improve the reliability of the test, is the laboratory and measurement department arbitration handy test instrument.
Technical Parameters:

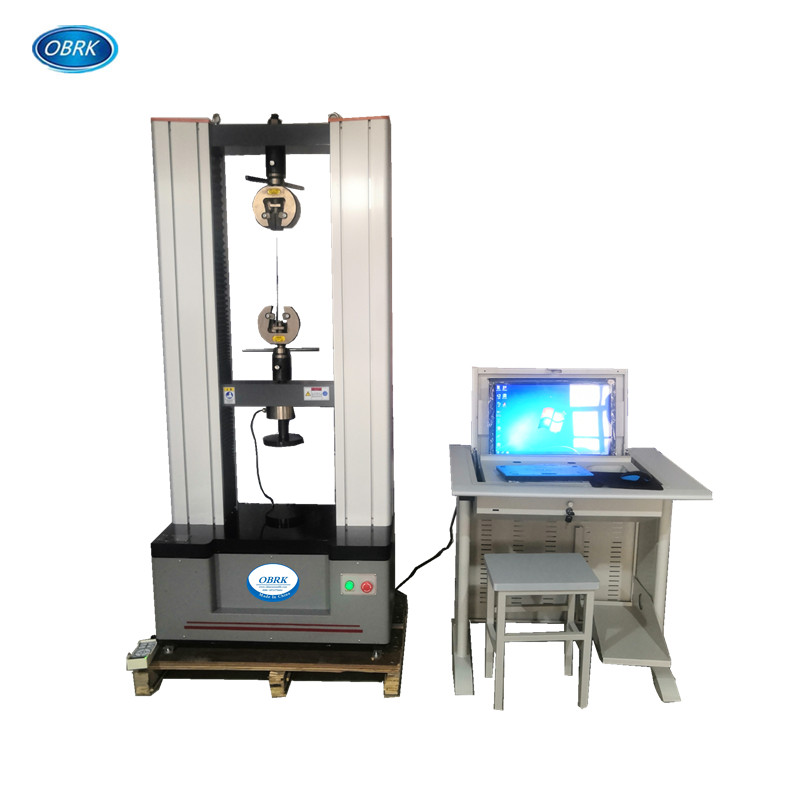

Model NO.: WDW-200 | |
Maximum load | 200KN |
Effective measuring range of test force | 1000N-200000N |
Minimum resolution | 1N |
Maximum distance between stretching fixtures | 800MM |
Double column spacing | 400MM |
test speed | 1-500mm |
Voltage | 220V |
200KN Clamp is used to less than 8mm Steel Bar | |
